Overall Dimension : A x B x C 152 x 71 x 135cm/60 x 28 x 53″
Seat Dimension : D x E x F 56 x 50 x 56cm/22 x 20 x 22″
Seat Dimension
(Wide Seat version): D x E x F 80 x 46 x 51cm/31.5 x 18 x 20″
Seat Height from Ground : G 56-64cm/22-25″
Seat Height from Deck : H 40-48cm/16-19″
Wheel Base : I 104cm/41

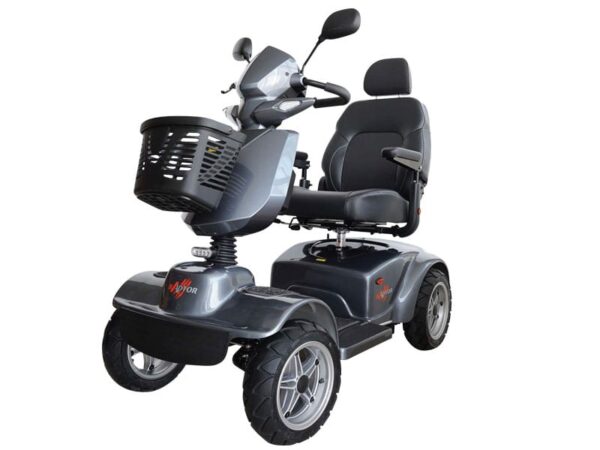

Merits Raptor
Add to Wishlist
Add to Wishlist
- New sporty streamline design
- Full suspension system with shock absorbers which delivers a smooth, comfortable ride
- Large 14” wheels which provide greater ground clearance
- Modern LED lighting system delivers a brillian light with less power consumption
- Digital LCD dashboard display: time display, battery gauge, temperature, maintenance messages, speed display and odometer
- Extra storage space beneath tiller
- Half speed safety switch which operates automatically when turning to provide extra safety
- With Merits 4PT (4 pole technology) and large controller & motor delivering much more power for climbing steep driveways and hills
- With new easy to access 12-volt socket
- Available in wide seat version
Add to Wishlist
Add to Wishlist
Max Speed 10kph/6.25mph
Range 40-50km/26-32mi
Turn Radius 167cm/65.7″
Ground clearance 10cm/4″
Motor DC 24V, 650W (Rating)/
2200W (Max)
Controller Rhino 160A
Battery 12V/60-80A/H x 2pcs
Charger 6A off-board
Gradient 8∞
Front Wheel 14″ pneumatic
Rear Wheel 14″ pneumatic
Brake intelligent, regenerative,
electromagnetic brakes
