Merits Maverick 10 P326A

Add to Wishlist
Add to Wishlist

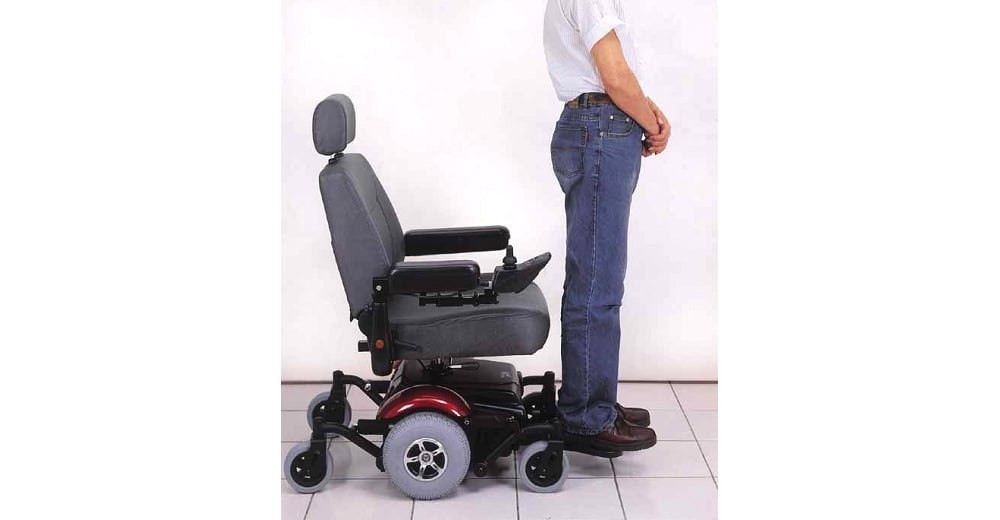

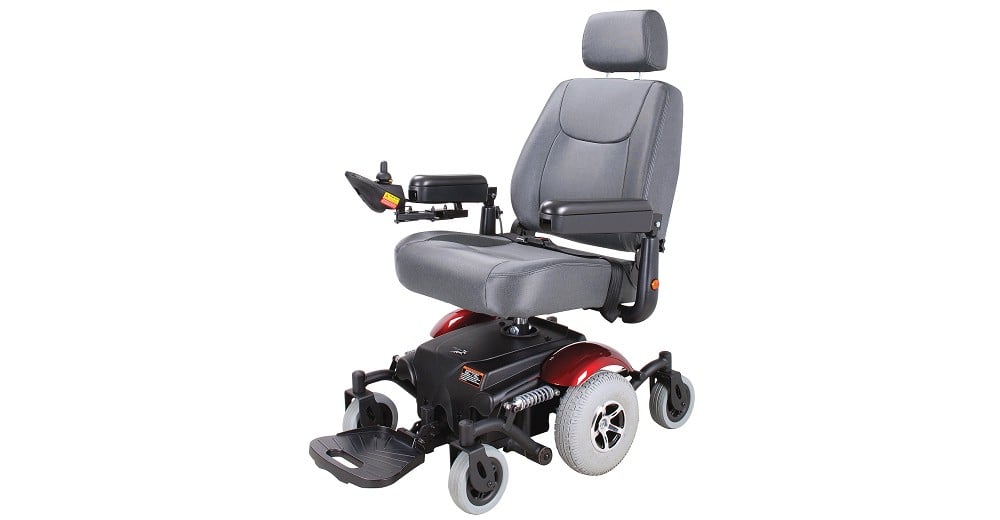

  • Mid-Wheel Drive Powerbase Wheelchair.
  • Mid-wheel drive design delivers outstanding maneuverability in tight, compact spaces and a smooth and stable ride both indoors and outdoors even over rough terrain.
  • Dual in-line motors enhanced efficiency, torque, range and performance.
  • Full front and rear suspension design offers a comfortable ride.
  • Low center of gravity design delivers a smooth and stable ride.

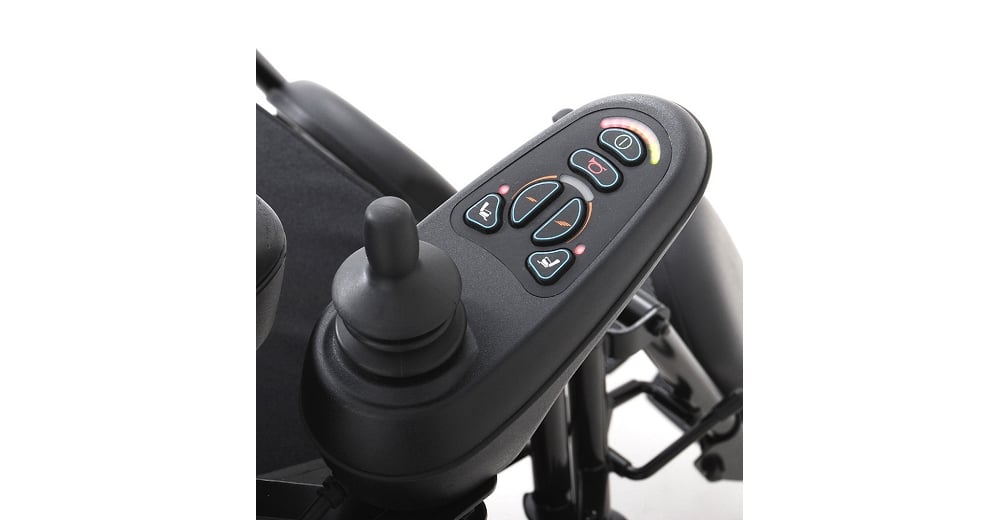

  • Swing back joystick mount is standard.

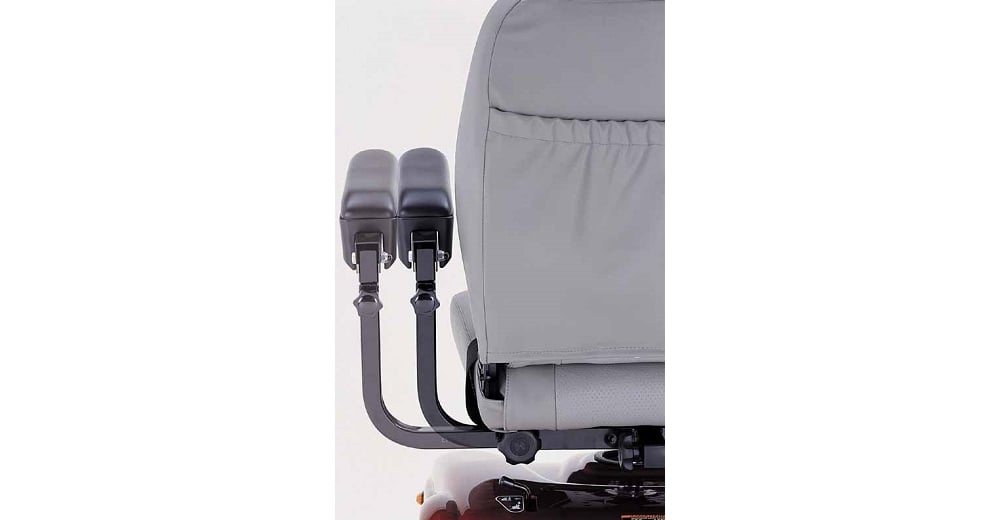

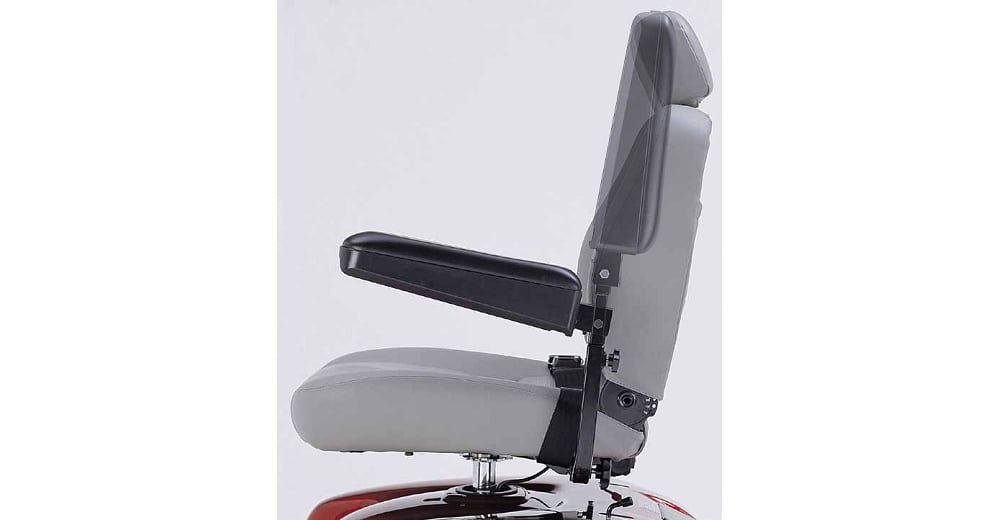

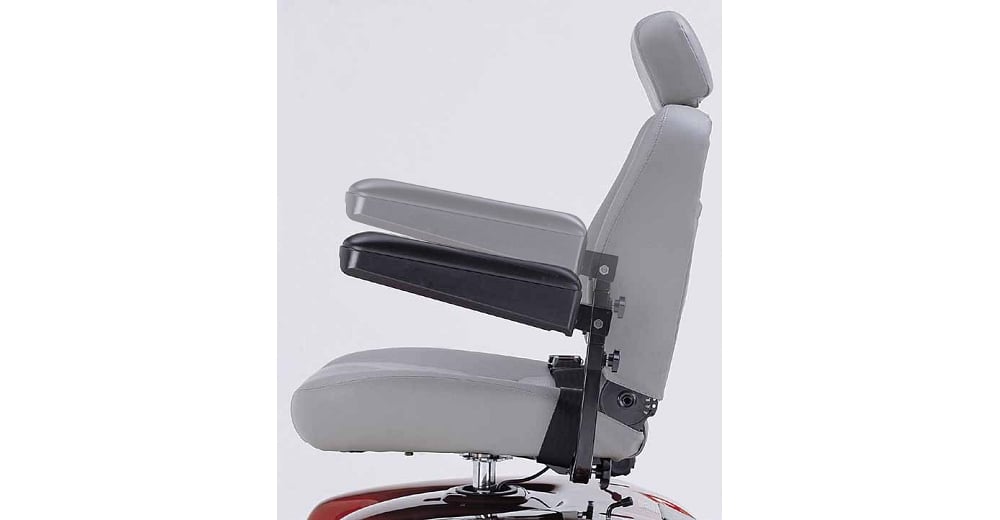

  • Height and width adjustable armrest, semi reclining backrest and height adjustable seat for various needs.
Add to Wishlist
Add to Wishlist
Category:

Merits Maverick 10 P326A Specifications

Weight Capacity 136 kg
Max. Speed 8 kph
Range 28 km
Turn Radius 50 cm
Ground Clearance 5 cm
Motor DC24V, 160W(Rating)/ 520W(Max)
Controller Dynamic Shark 40A
Battery 12V/ U1 x 2pcs
Charger 4A off-board
Gradient
Front Wheel 6″ x 2″ PU tire
Rear Wheel 10″(260×85) foam filled tire
Brake Intelligent, Regenerative, Electromagnetic brakes
Dimensions Length x Width x height (if available) 86 cm x 61 cm x 123 cm

Merits Maverick 10 P326A Documents

Download Brochure

Download Manual

Merits Maverick 10 P326A Accessories

  • Merits Cup holder and bag
  • 134 Deluxe two tone captain seat
  • R200 Single seat-post power Seat elevator
  • Cup holder
  • 135 Deluxe captain seat
  • 133 Standard captain seat
  • Optional lighting kit
  • 123 Deluxe two tone fish-on seat
  • 124 Deluxe two tone stadium seat
