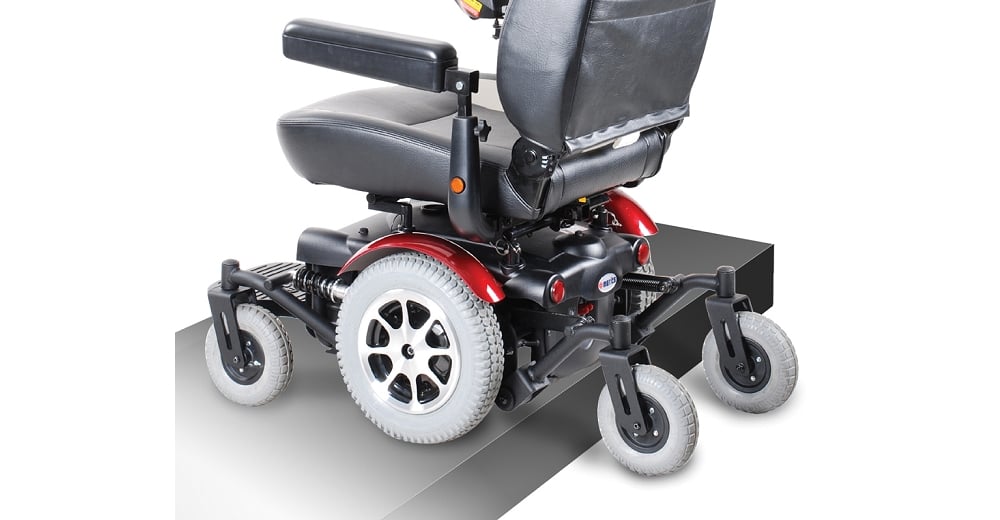

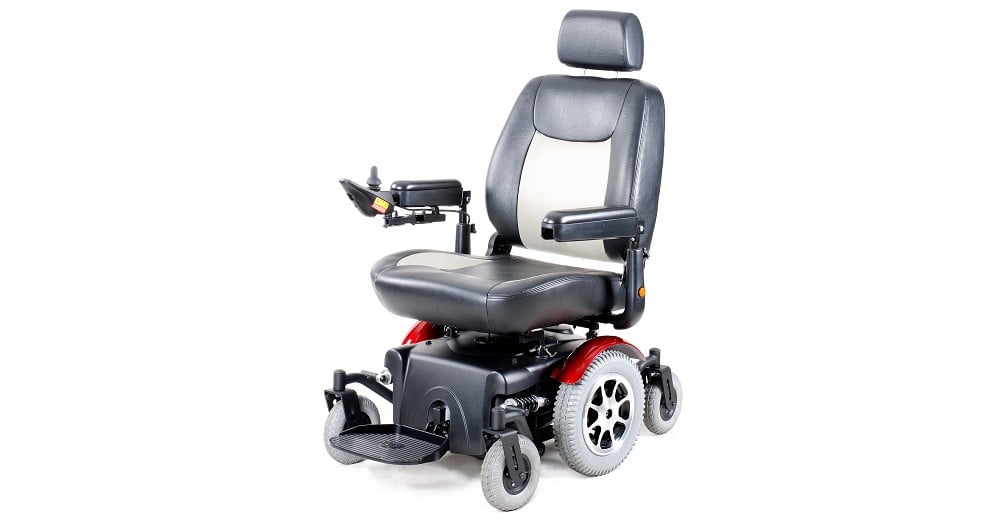

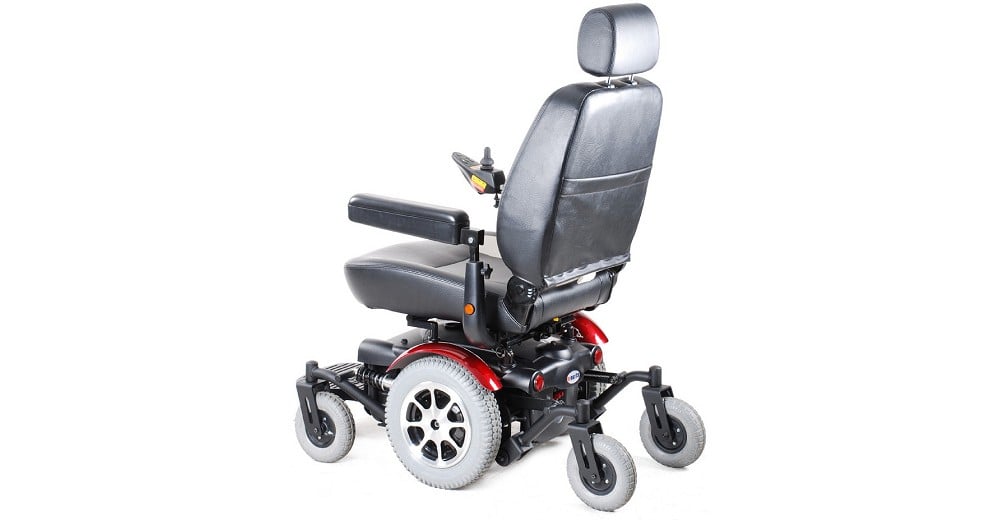

Merits Maverick 14 P330

Add to Wishlist
Add to Wishlist
  • Mid-Wheel Drive Powerbase Wheelchair.
  • Full suspension (front & rear) for enhance over more varied terrain.
  • Enhanced stability: 4 seat post design.
  • Mid-Wheel drive design delivers outstanding maneuverability in tight, compact spaces and a smooth and stable ride both indoors and outdoors even over rough terrain.
  • Dual in-line motors for enhanced efficiency, torque, range and performance.
  • 14″ knobby tires and optimum weight distribution provide superior traction.
  • Swing back joystick bracket is standard.
  • Heavy duty group III model.
Add to Wishlist
Add to Wishlist

Merits Maverick 14 P330 Features

  • Full suspension (front & rear)
  • Built to navigate everyday obstacles
  • Easily disassembles Maverick
  • Optional R300 10″ cross braces power seat lifter
  • Height adjustable armrest
  • Flip-up armrest
  • Width adjustable armrest
  • Swing back joystick bracket is standard

Merits Maverick 14 P330 Specifications

Weight Capacity 205 kg
Max. Speed 7.2 kph
Range 40 km
Turn Radius 53 cm
Ground Clearance 8 cm
Motor DC 24V, 200W(Rating)/ 575W(Max)
Controller Dynamic Shark 50
Battery 12V/ 22NF x 2pcs
Charger 5A off-board
Front Wheel front: 8″ x 2″ PU tire ; rear: 8″ PU tire
Rear Wheel 14″ tire
Brake Intelligent, Regenerative, Electromagnetic brakes
Dimensions Length x Width x height (if available) 101 cm x 66 cm x 127 cm

Merits Maverick 14 P330 Documents

Download Brochure

Download Manual

Merits Maverick 14 P330 Accessories

  • Merits Cup holder and bag
  • 134 Deluxe two tone captain seat
  • Cup holder
  • 135 Deluxe captain seat
  • 133 Standard captain seat
  • Optional lighting kit
  • R300 10″ Cross-brace Power Seat Elevator
