Merits Vector P323

Add to Wishlist
Add to Wishlist

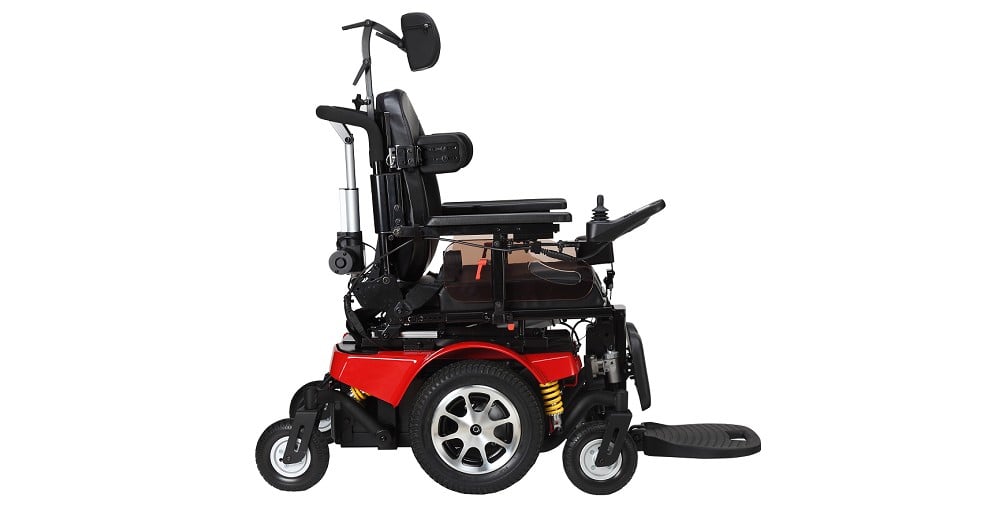

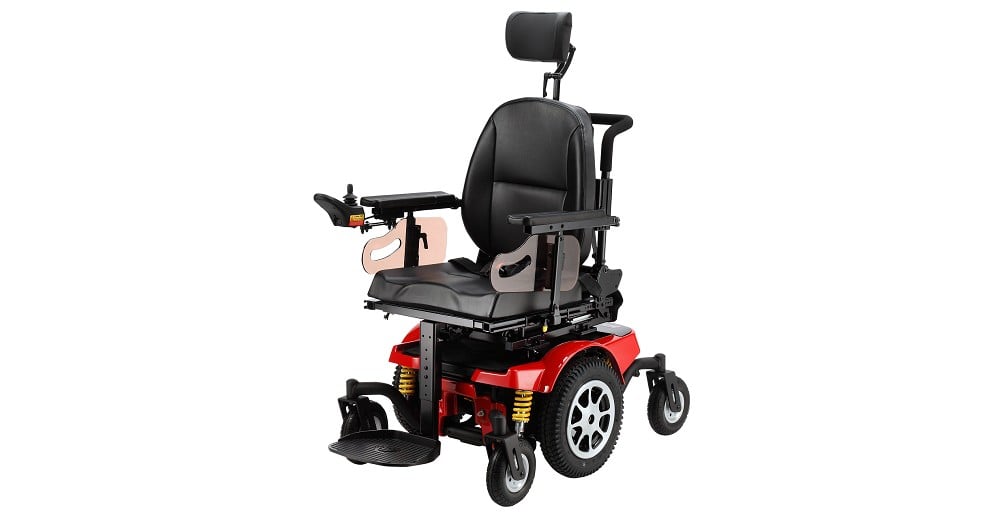

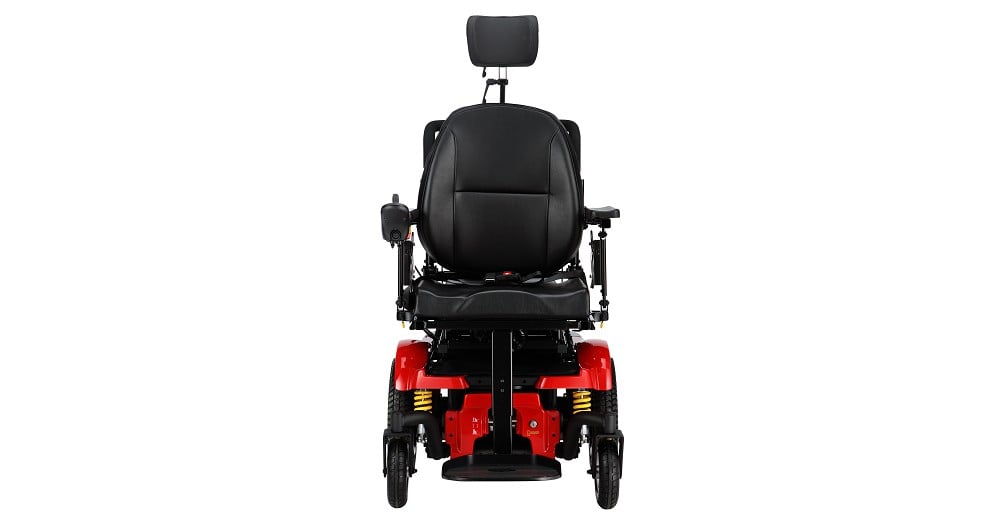

  • Multi-Function Rehab Power Wheelchair.

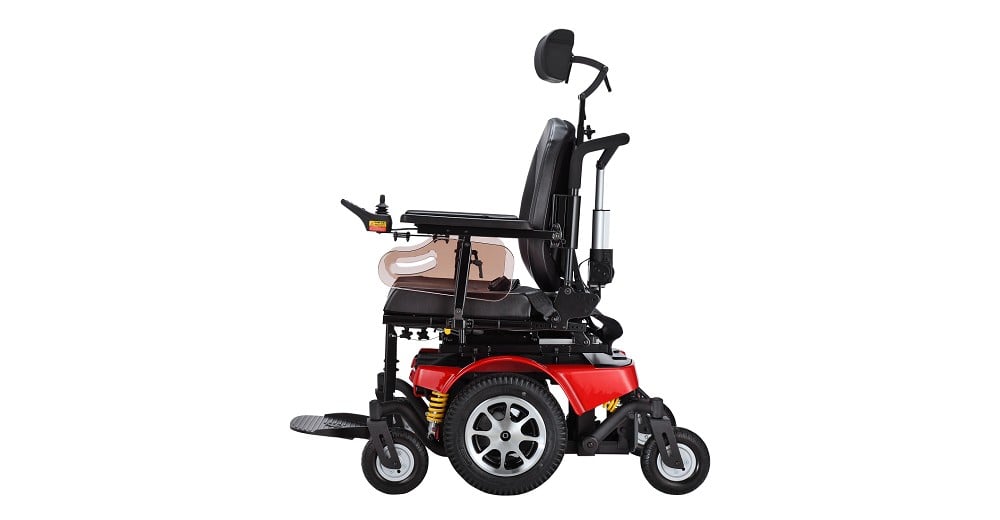

  • Center of gravity changes according to sliding seat. (For safety reasons, center gravity of end-user will always stay above the middle wheels).
  • Mechanical shear reduction device for injury prevention.

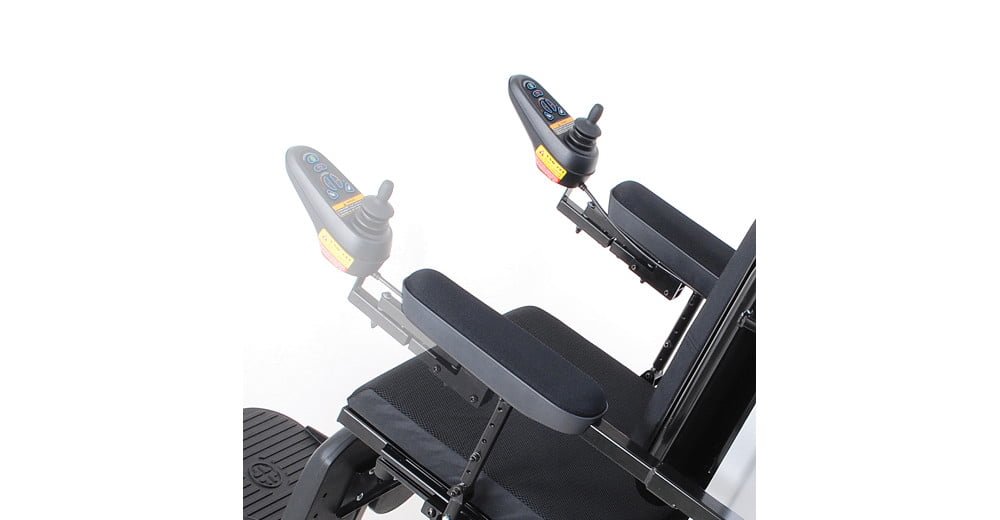

  • Armrest adjusted automatically when reclined for comfortable seating.

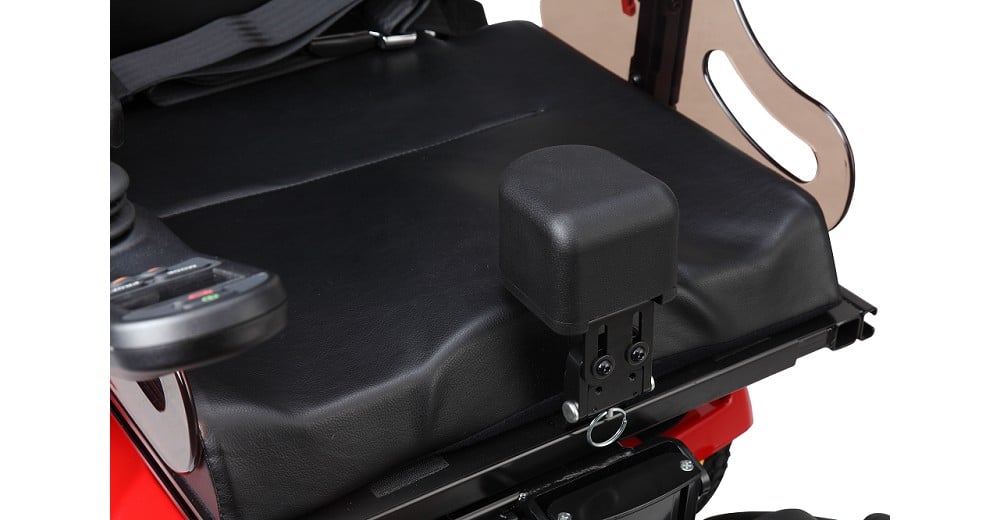

  • Adjustable seat width and seat depth (16″/18″/20″) for customized fitting of individual user.
  • Dual in-line motors for enhanced efficiency, torque, range and performance.
  • Optional seat elevator and power footplate or elevating legrest.

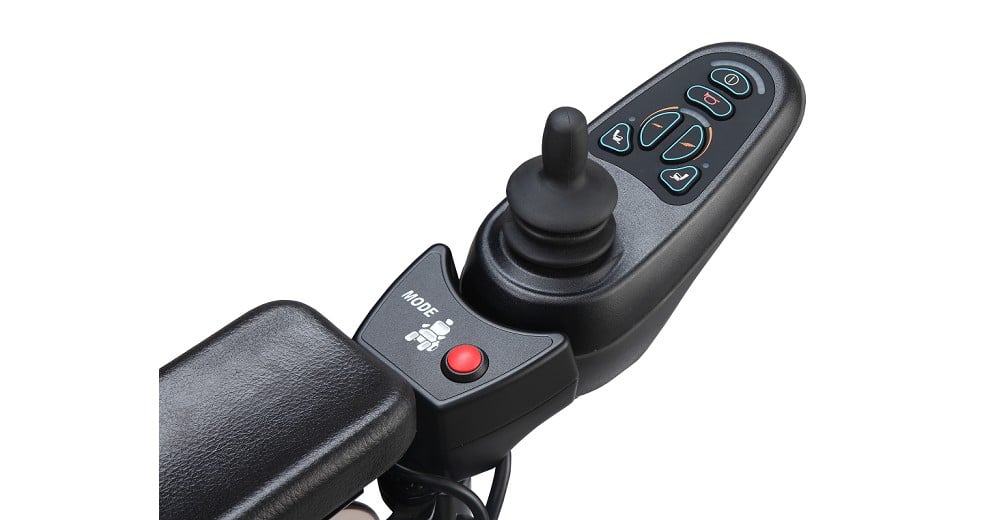

  • Optional PG R-NET multi-function controller.
Add to Wishlist
Add to Wishlist

Merits Vector P323 Features

  • Full front and rear suspension design

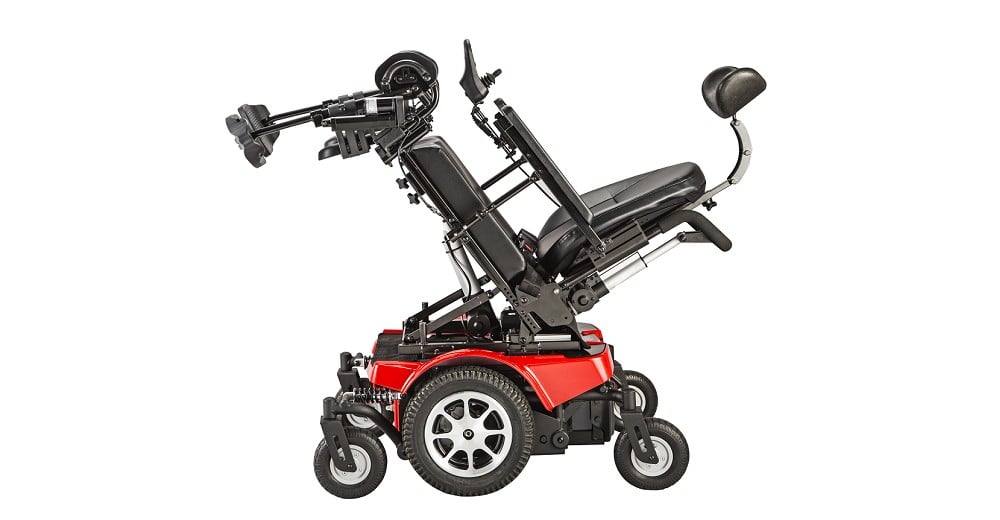

  • Power tilt operated in 5° – 55°
  • Power recline adjustment from 90° – 150°

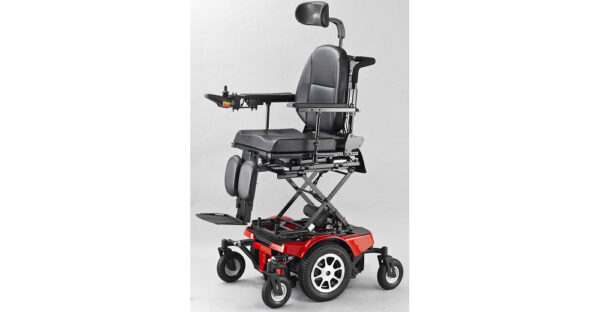

  • Seat elevator travel range: 30cm / 12inch

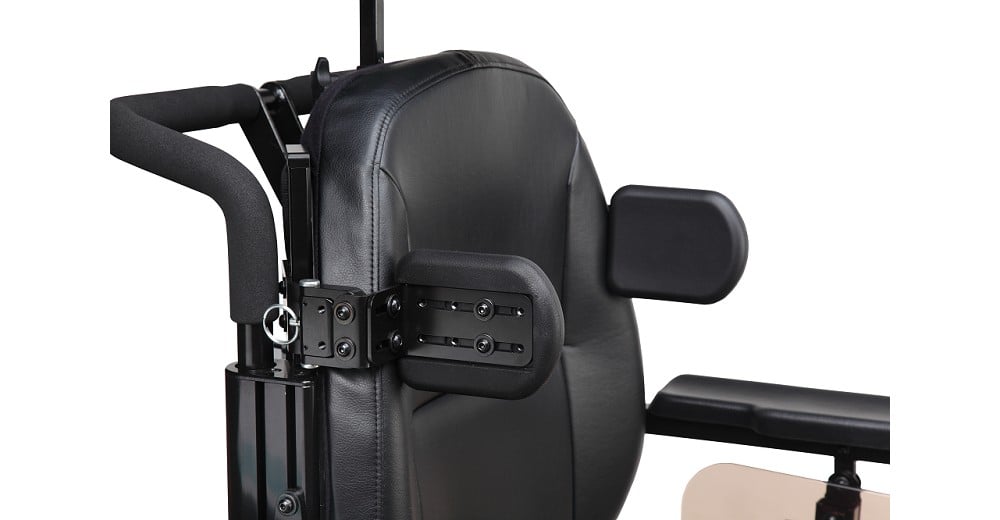

  • Adjustable headrest

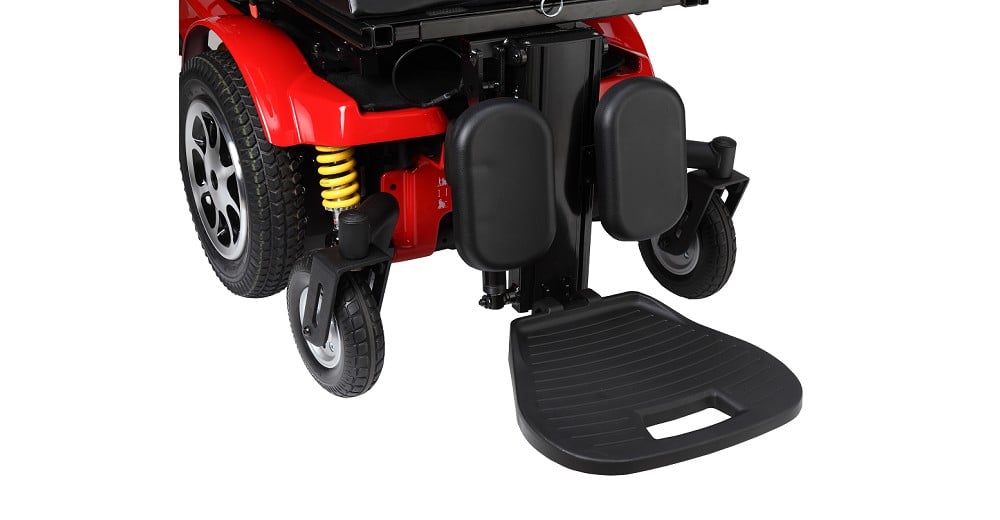

  • Optional power footplate

Merits Vector P323 Specifications

Weight Capacity 182 kg
Max. Speed 8 kph
Range 38 km
Turn Radius 68 cm
Ground Clearance 8 cm
Motor DC 24V, 200W(Rating)/ 575W(Max)
Controller PG VR2 60A/ Rnet 60A
Battery 22NF/ 12V 62AH x 2pcs
Charger 5A off-board
Gradient 7.5°
Front Wheel F: 8″/ R: 8″
Rear Wheel 14″
Brake Intelligent, Regenerative, Electromagnetic brakes
Dimensions Length x Width x height (if available) 115 cm x 68 cm x 107 cm

Merits Vector P323 Documents

Download Brochure

Download Manual

Merits Vector P323 Accessories

  • Cup holder
  • Headrest kit
  • Optional lighting kit
  • Universal controller bracket
  • R300 10″ Cross-brace Power Seat Elevator
  • Full lighting kit options
